Key Projects

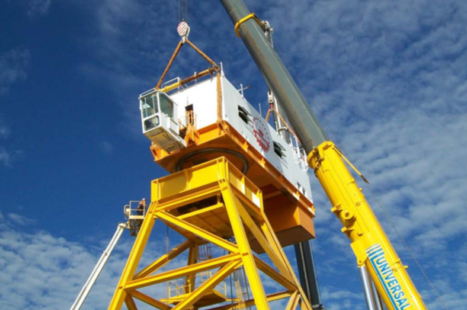

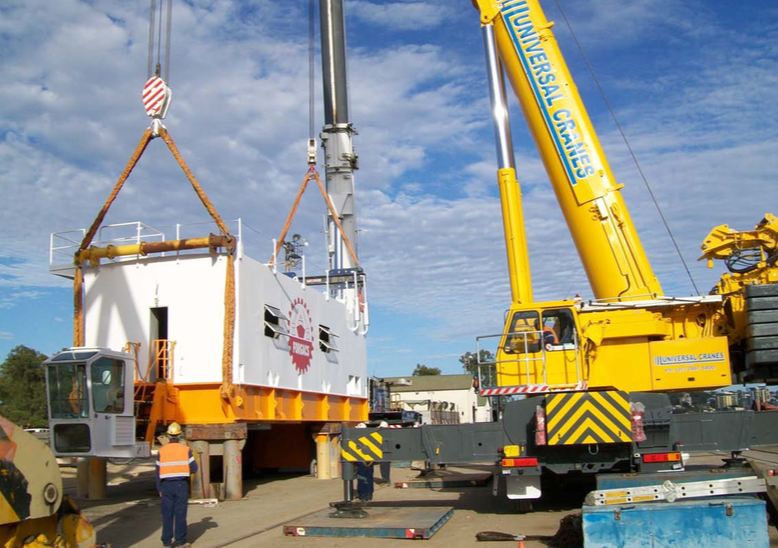

Harbour Crane

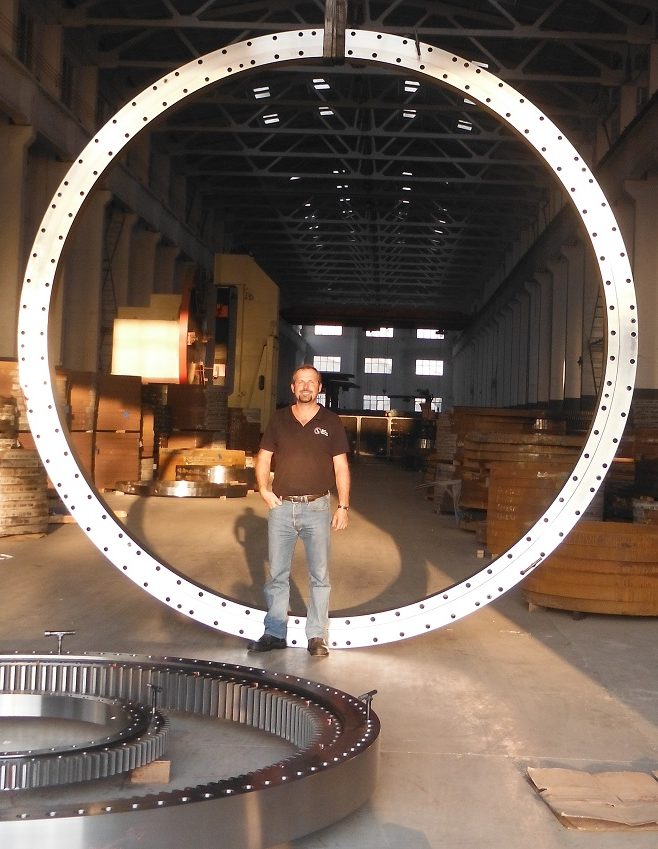

Following a catastrophic failure of the slew bearing, SBS were engaged to carry out an RCA inspection on the new bearing.  We manufactured the ø4,100mm slew bearing in 85 days. The slew bearing was an internally geared triple row roller design.

Senior engineer attended the factory to carry out FAT (Factory Acceptance Testing – hardness, material certificates and chemical composition, axial/radial run out, axial, radial clearance, gear run-out and dimensional tolerances).

SBS carried out in-situ flatness survey, using laser levelling technology.

Bucket wheel reclaimer

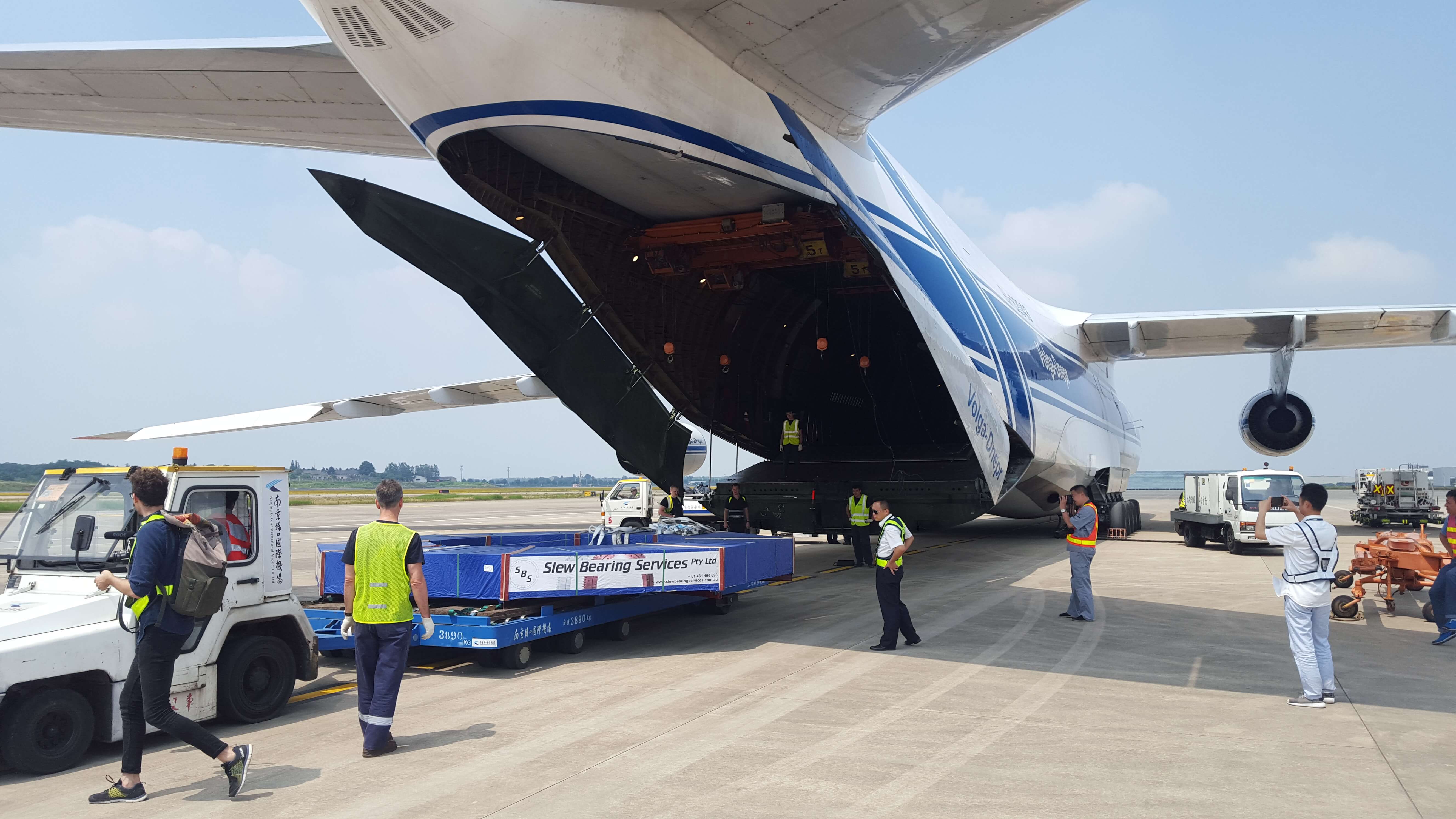

Slew Bearing Services manufactured a 5,280mm combi slew bearing for a bucket wheel reclaimer and chartered an Antonov AN-124 cargo plane to deliver the slew bearing in under 60 days from start to finish.

Our Service included –

Senior engineer attended the factory to carry out FAT (Factory Acceptance Testing – hardness, material certificates and chemical composition, axial/radial run out, axial, radial clearance, gear run-out and dimensional tolerances).

SBS was actively involved at every stage of the design, manufacture, inspection, logistics and installation of the project.

Slew Bearing Services take a hands on approach to every large scale project they are engaged for.  This insures the highest quality product, with on time, and on budget delivery.

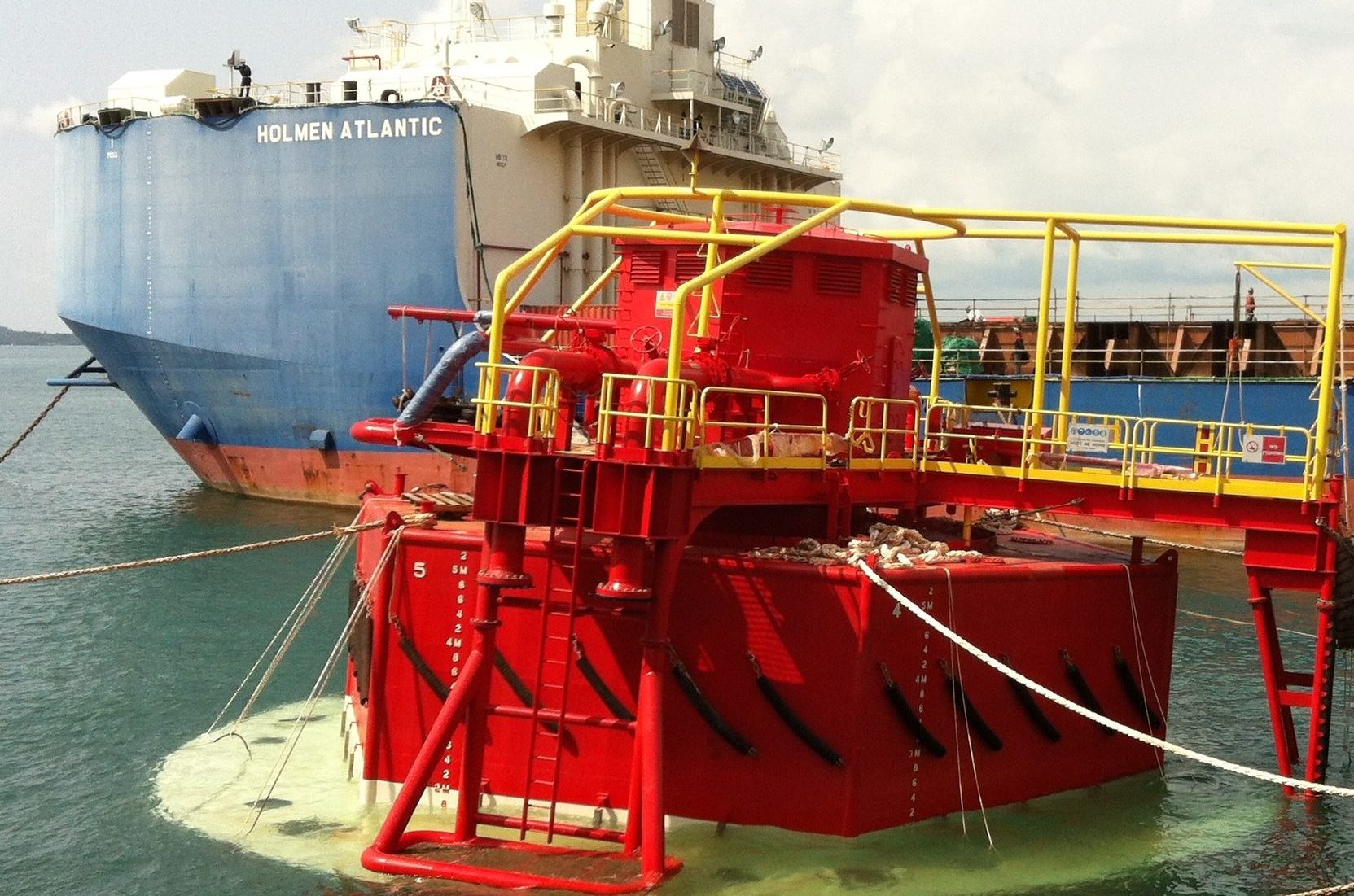

Single Buoy Mooring

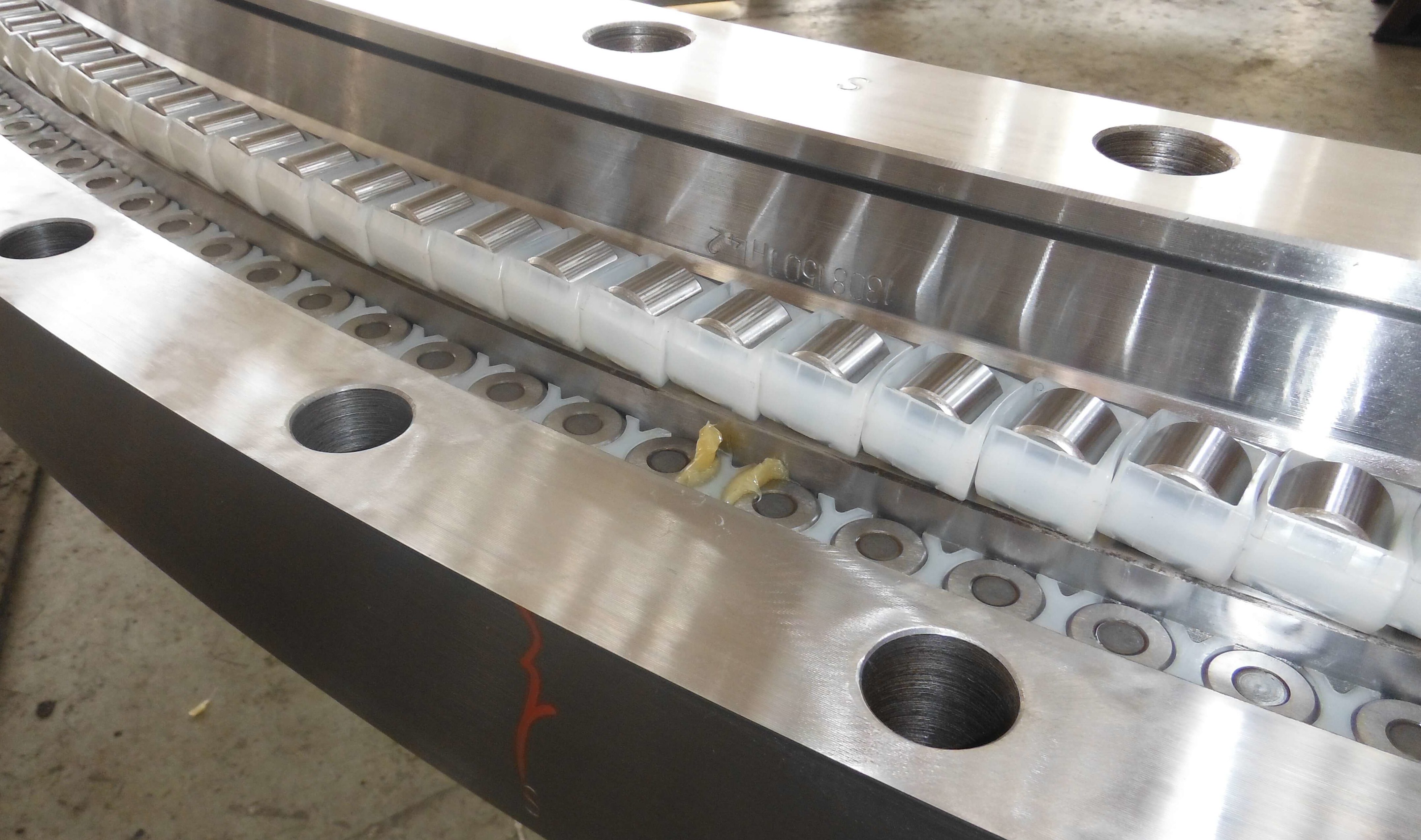

SBS designed and manufactured swivel and main roller bearings (MRB) to class specifications for a SBM in Myanmar.  Bearings ranged from 610 to 1900mm for swivel design and 3,955mm for MRB.

Our Service included –

Senior engineer attended the factory to carry out FAT (Factory Acceptance Testing – hardness, material certificates and chemical composition, axial/radial run out, axial, radial clearance, and dimensional tolerances).
